Extra Wide Range:
The extra wide range is a larger version of our industrial range. It has a wider tread width to give ample space, in turn creating a more comfortable working area on the platform.
- Platform Height: between 500 - 3750mm
- Tread Size: 700 (W) x 200 (D) mm
- Platform Size: 700 (W) x 400 (D) mm
NOTE: This range comes fully welded and ready to use!
| Code |
Treads |
Working Platform Height
|
Working Height |
Overall Height |
Overall Width |
Overall Length |
Weight |
Brake Type |

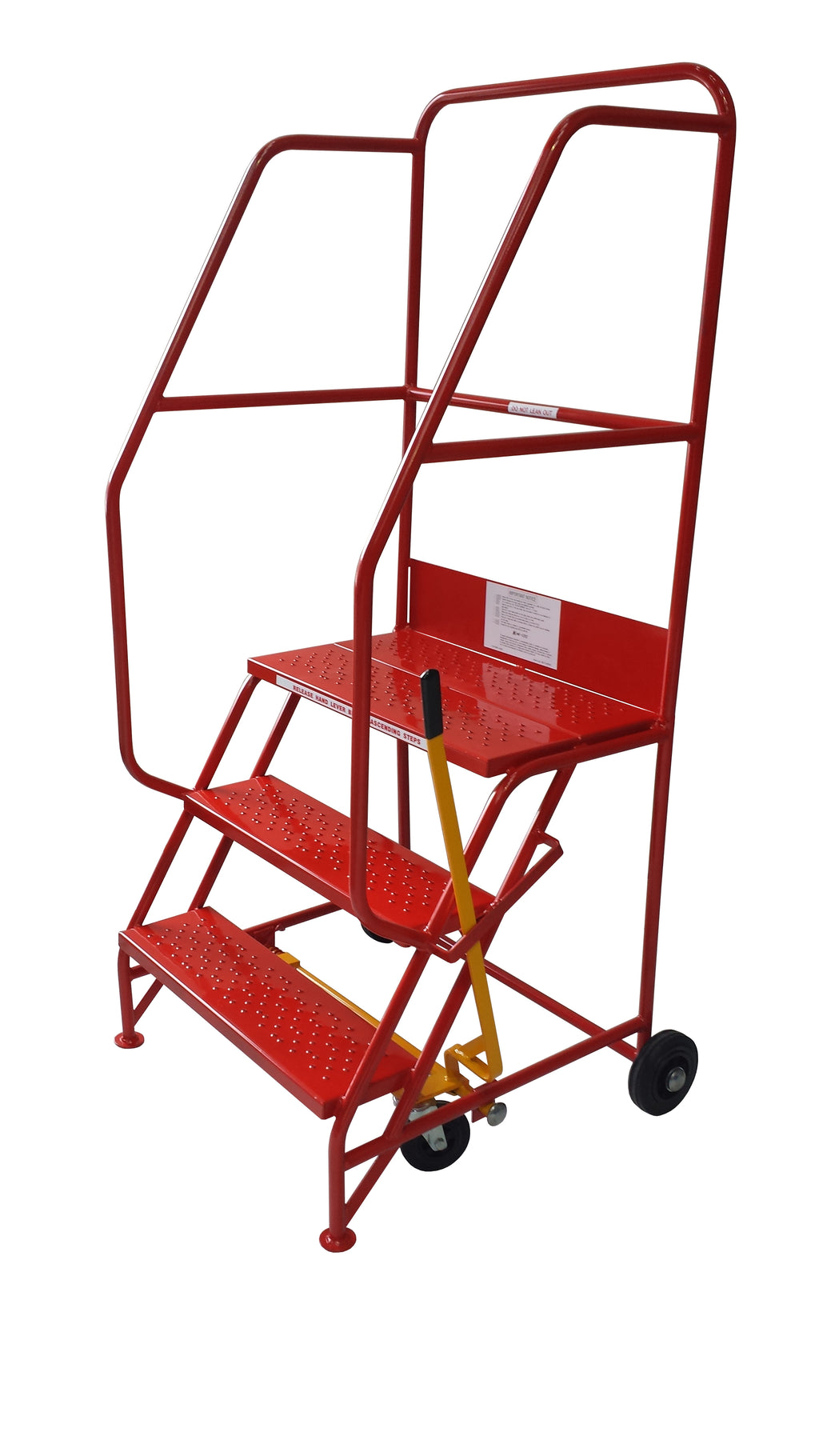

| KW03 |
3 |
750mm |
1750-2500mm |
1750mm |
995mm |
820mm |
42kgs |
Side Brake |

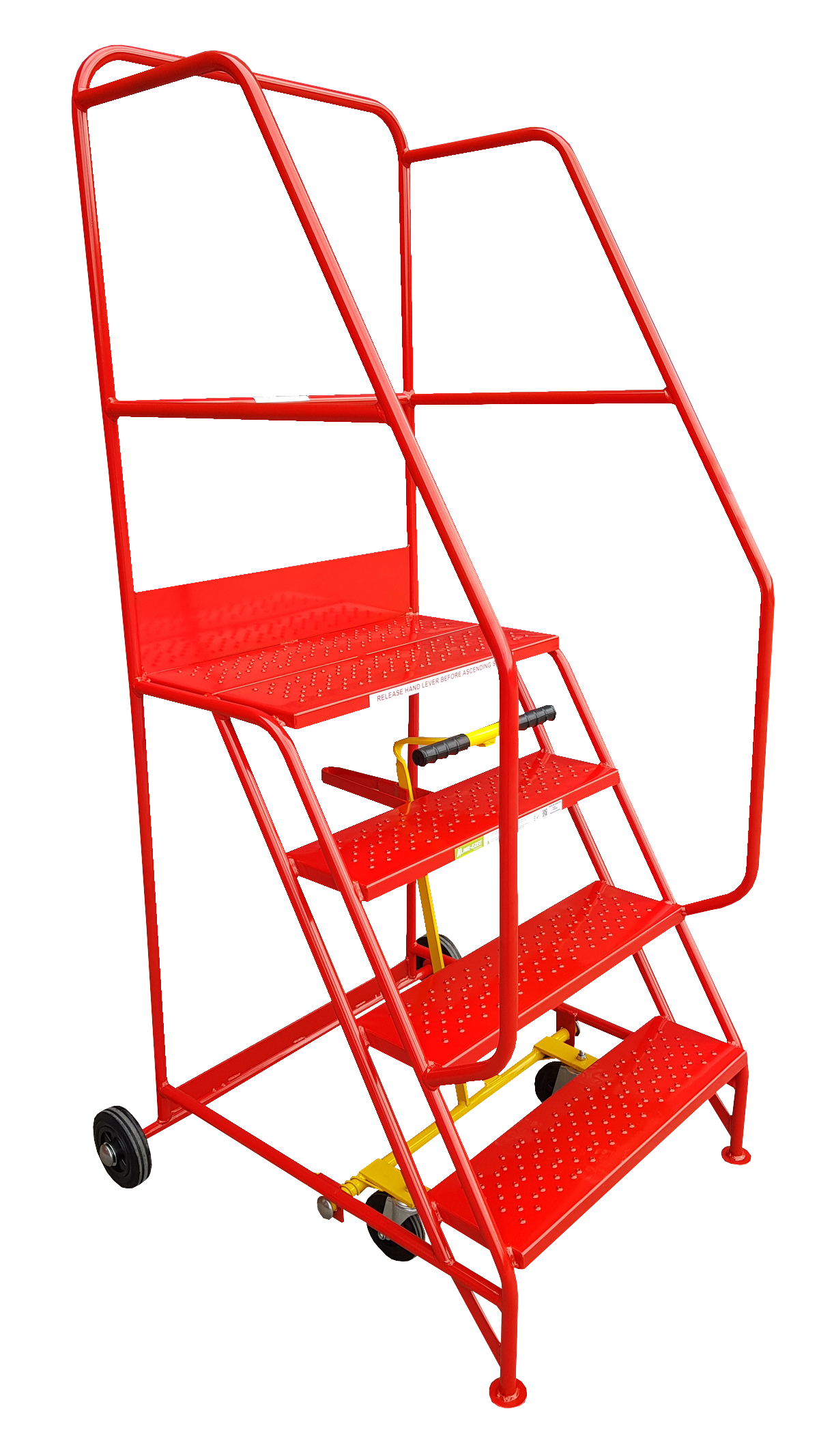

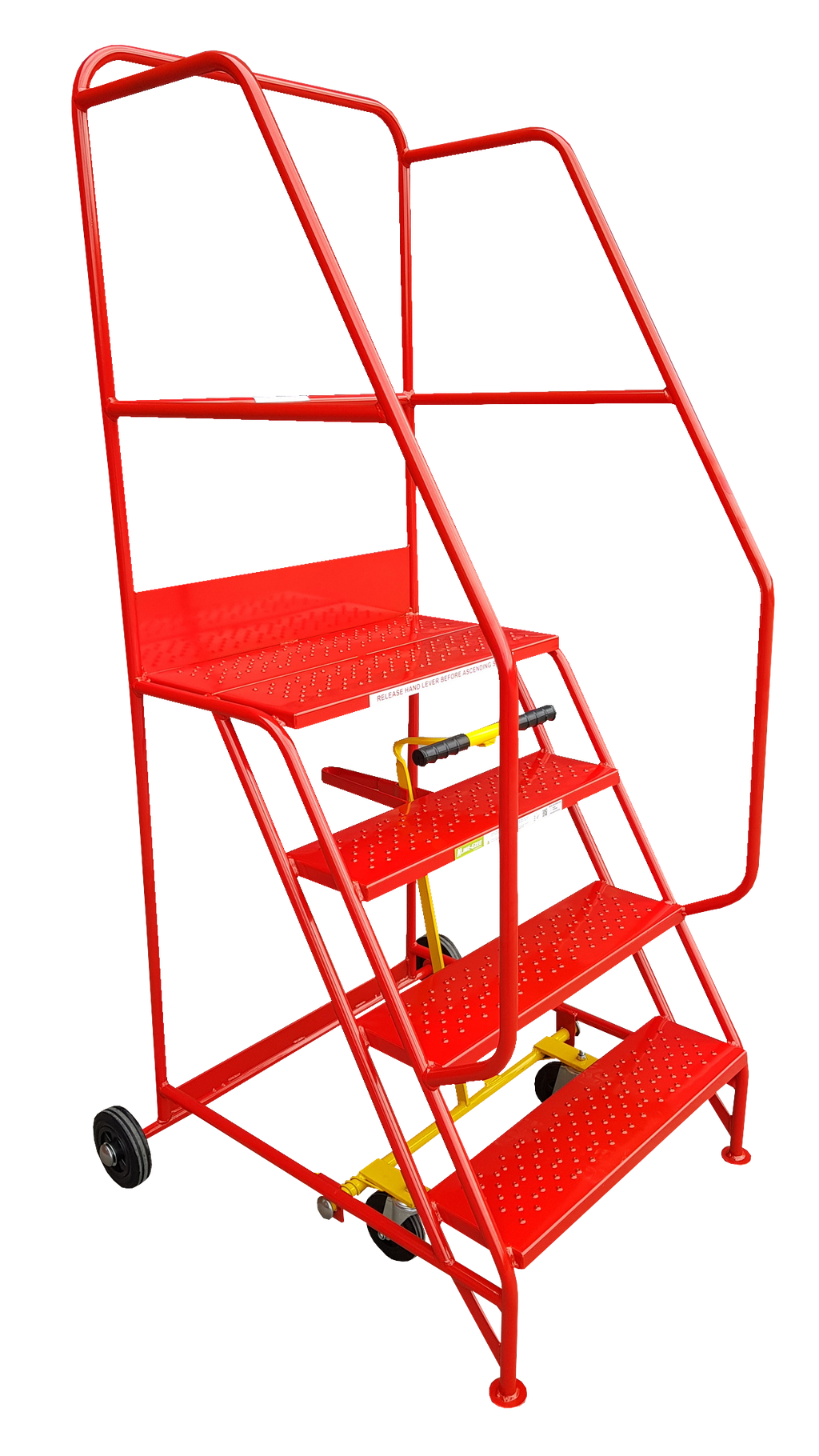

| KW04 |
4 |
1000mm |
2000-2750mm |
2000mm |
995mm |
1040mm |
51kgs |
Central Brake |

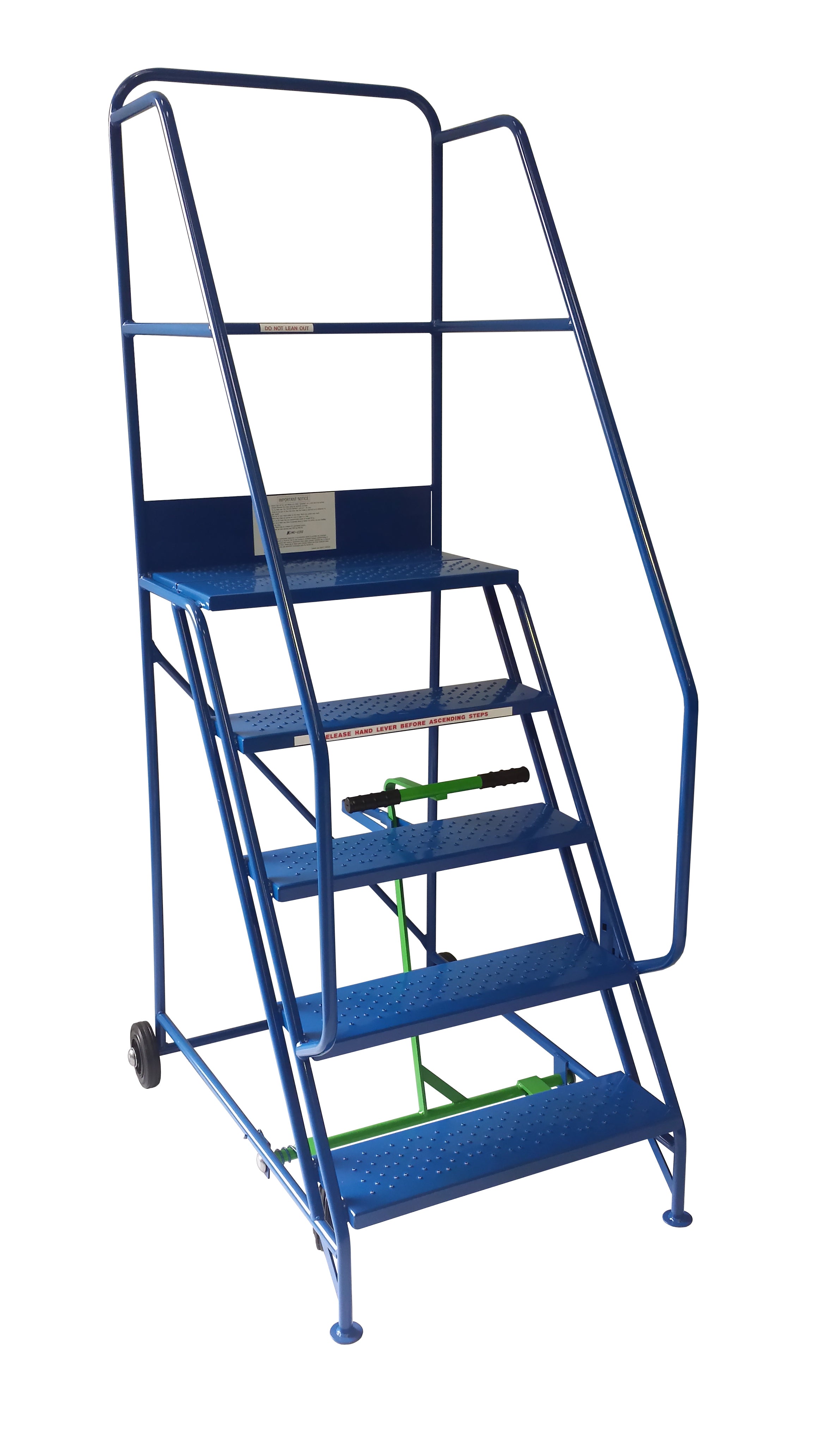

| KW05 |
5 |
1250mm |
2250-3000mm |
2250mm |
995mm |
1270mm |
75kgs |
Central Brake |

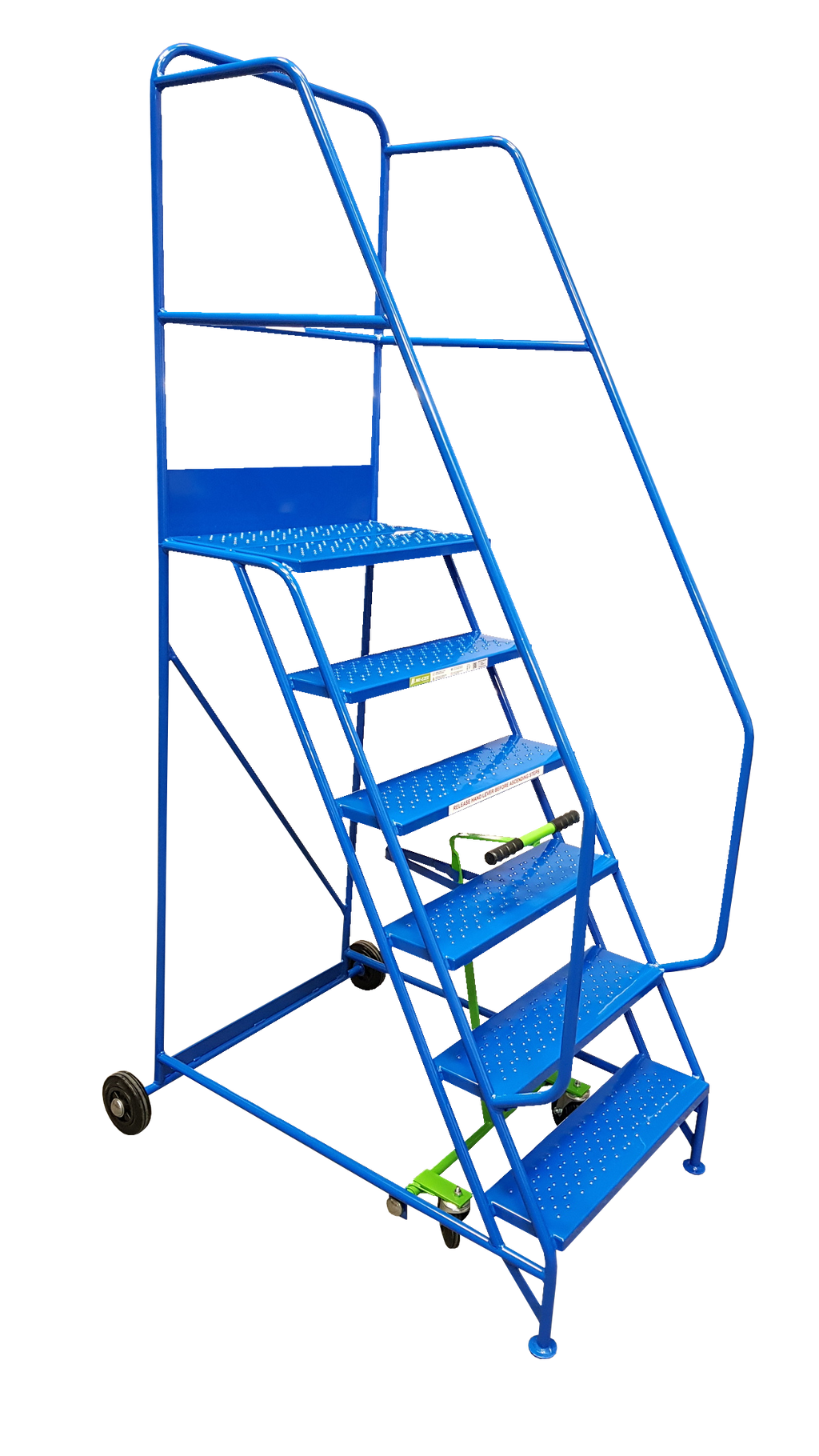

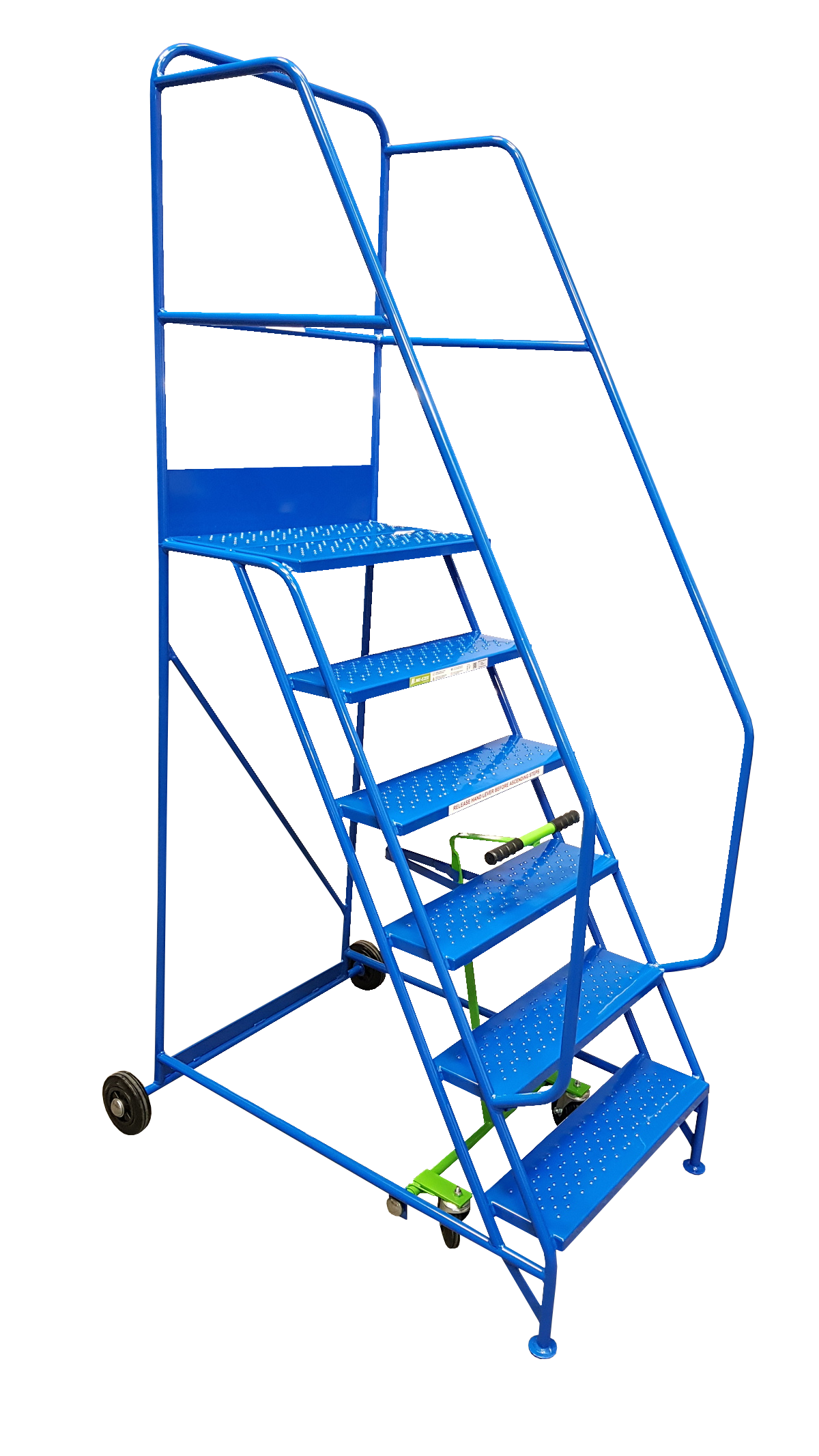

| KW06 |
6 |
1500mm |
2500-3250mm |
2500mm |
995mm |
1360mm |
82kgs |
Central Brake |

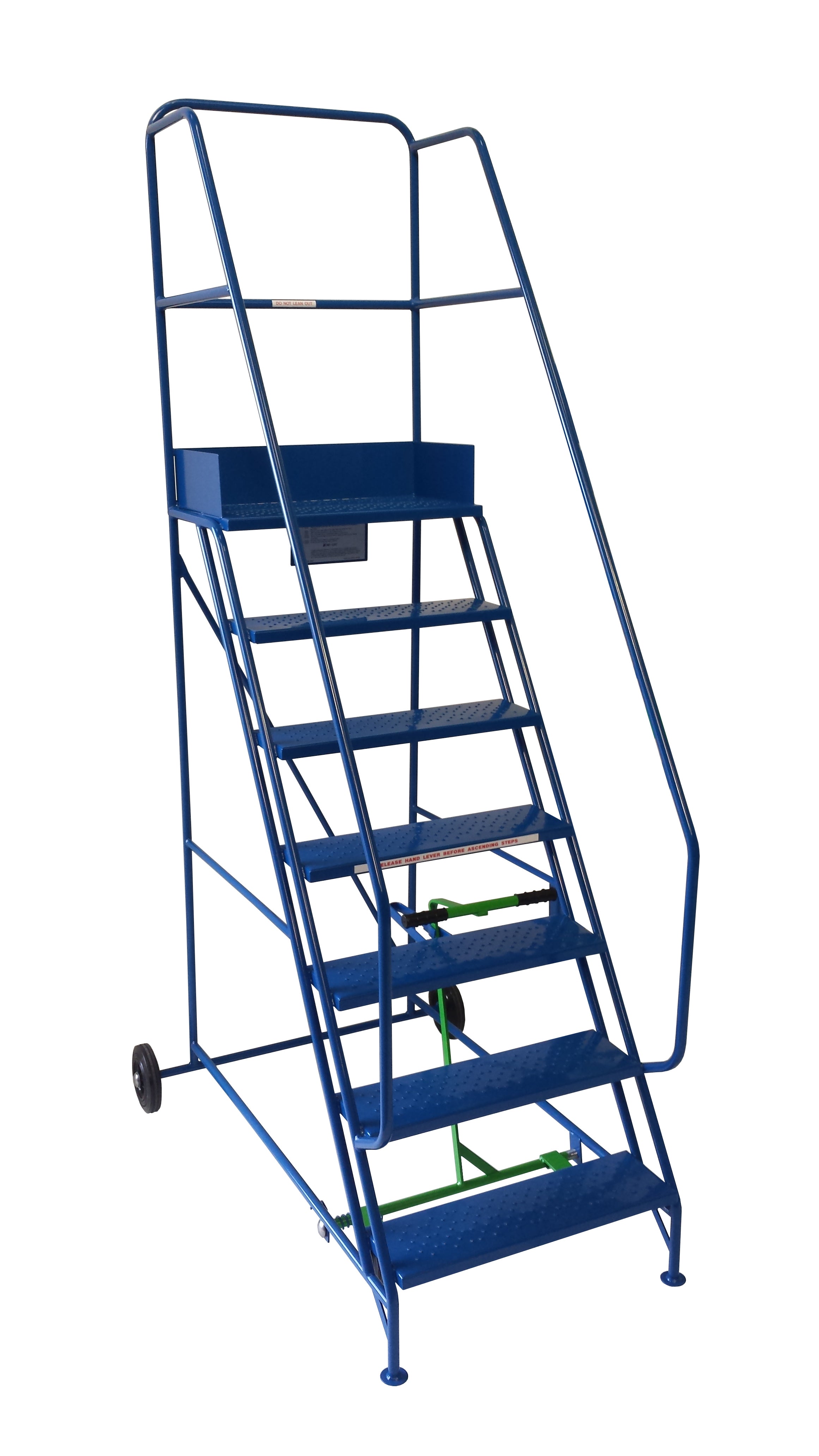

| KW07 |
7 |
1750mm |
2750-3500mm |
2750mm |
995mm |
1450mm |
90kgs |
Central Brake |
| KW08 |
8 |
2000mm |
3000-3750mm |
3000mm |
995mm |
1575mm |
98kgs |
Central Brake |
| KW09 |
9 |
2250mm |
3250-4000mm |
3250mm |
995mm |
1730mm |
110kgs |
Central Brake |

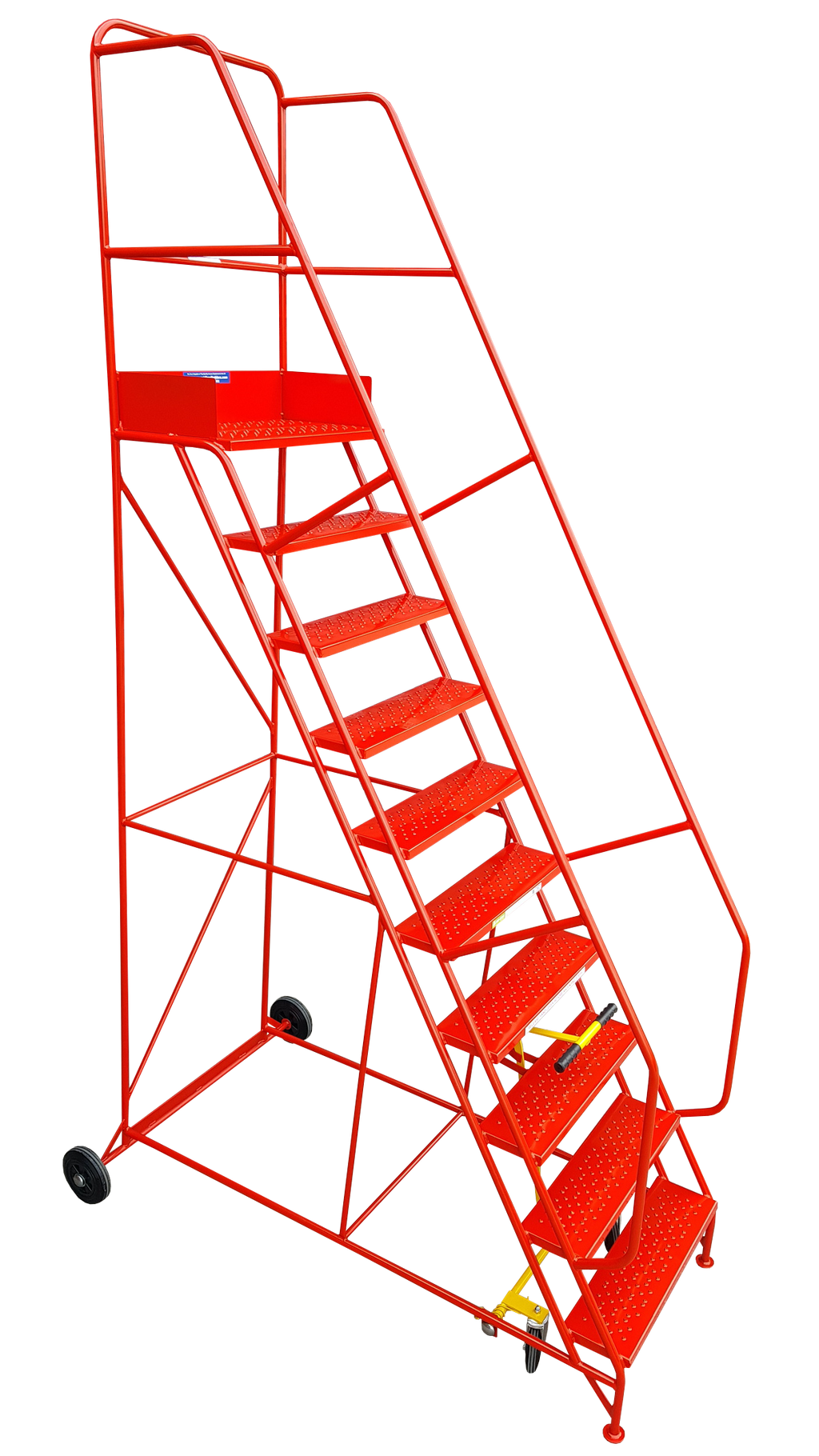

| KW10 |
10 |
2500mm |
3500-4250mm |
3500mm |
1150mm |
1905mm |
118kgs |
Central Brake |

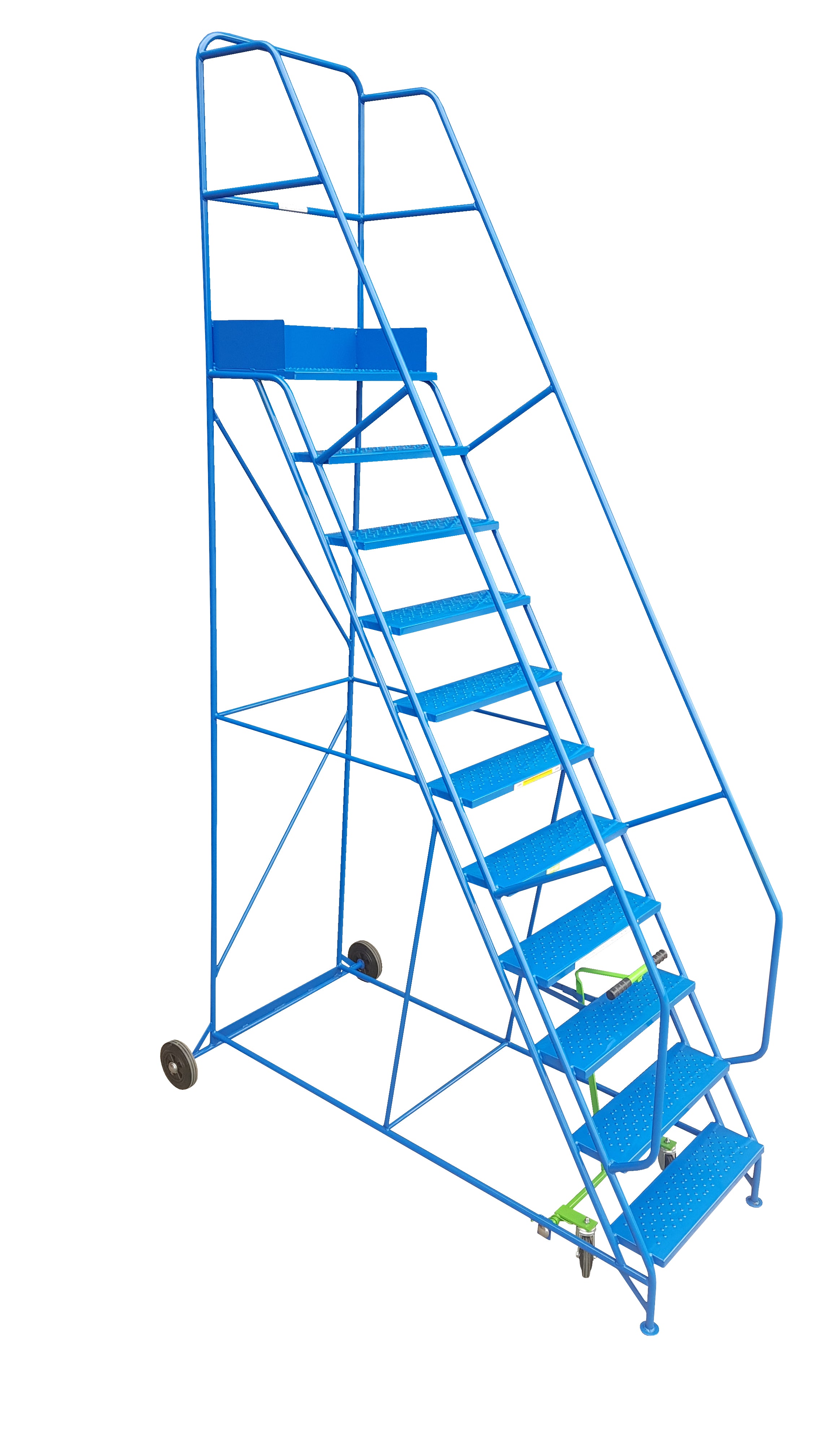

| KW11 |
11 |
2750mm |
3750-4500mm |
3750mm |
1150mm |
2070mm |
125kgs |
Central Brake |

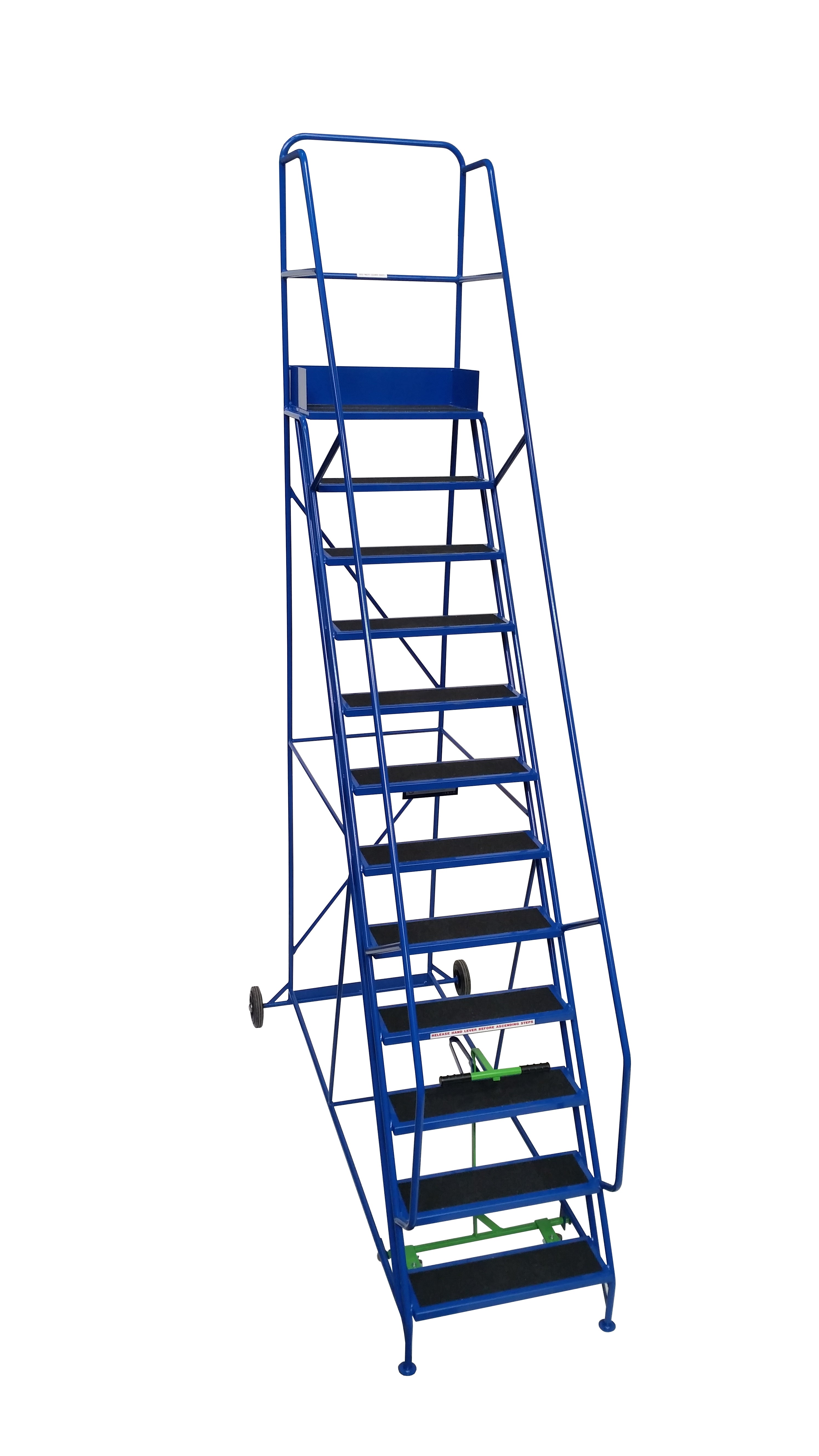

| KW12 |
12 |
3000mm |
4000-4750mm |
4000mm |
1150mm |
2230mm |
136kgs |
Central Brake |

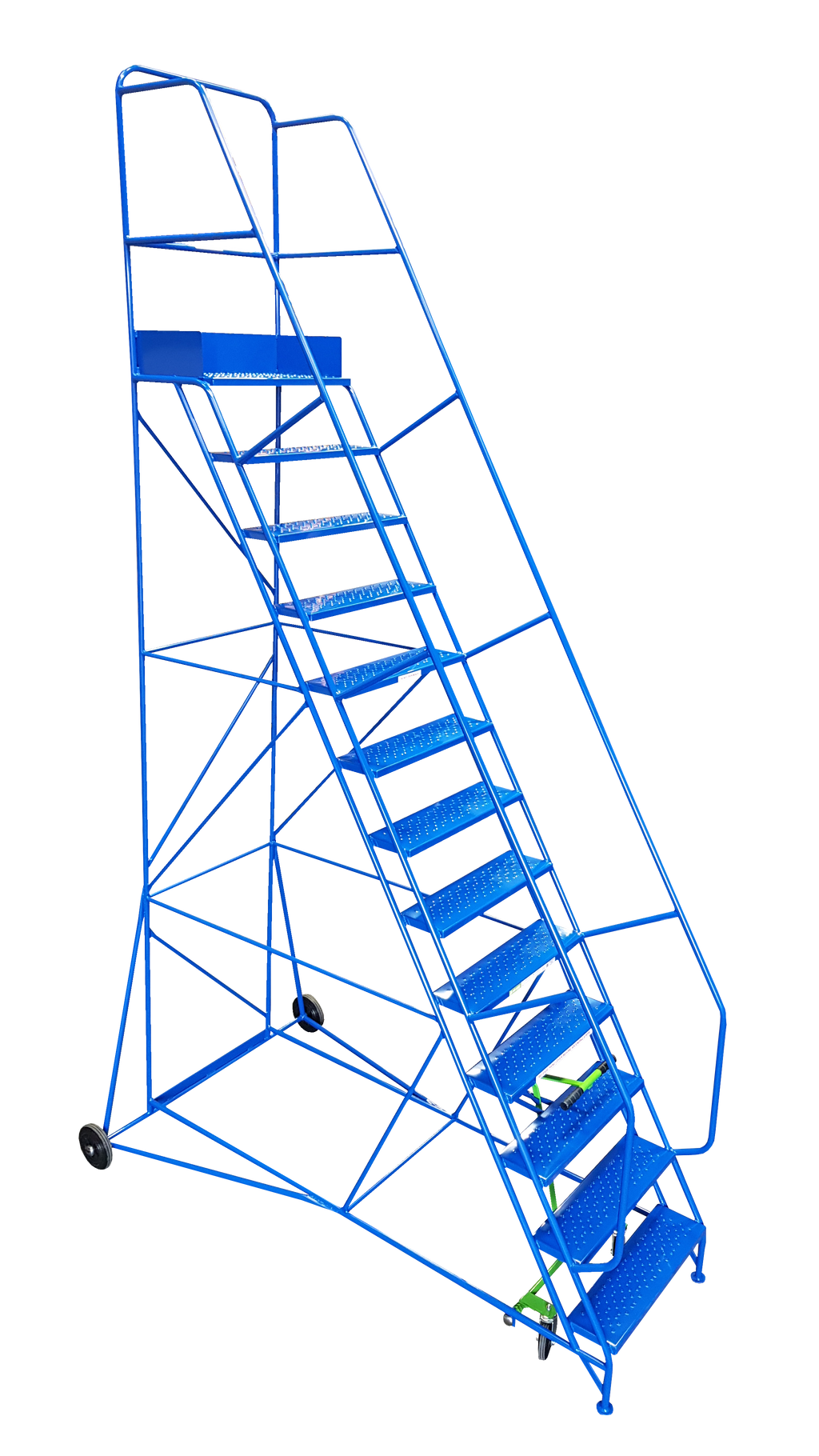

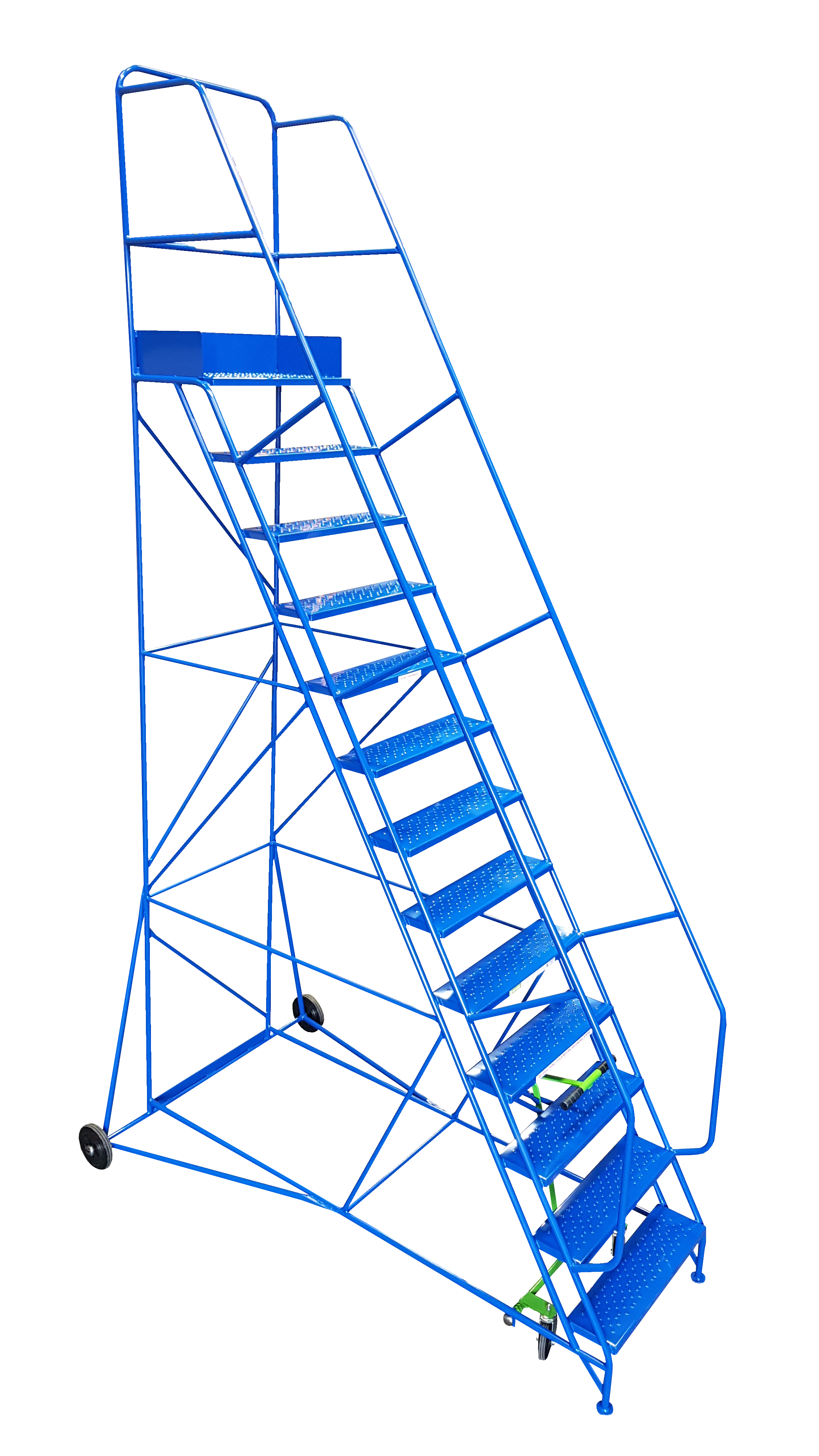

| KW13 |
13 |
3250mm |
4250-5000mm |
4250mm |
1380mm |
2470mm |
145kgs |
Central Brake |
| KW14 |
14 |
3500mm |
4500-5250mm |
4500mm |
1380mm |
2630mm |
150kgs |
Central Brake |
| KW15 |
15 |
3750mm |
4750-5500mm |
4750mm |
1470mm |
2795mm |
158kgs |
Central Brake |
